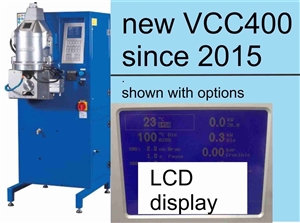

Indutherm Continuous casting machine VCC400 LCD
Indutherm Continuous casting machine VCC400 LCD
Indutherm Continuous casting machine VCC400 LCD

Contact us for current pricing


Availability:: Usually Ships in 6 to 8 Weeks
Item #: 16-013-15V


Power:

Qty:
Product Description Technical Specs

This modern vertical continuous casting machine for precious/non-precious metal offers excellent casting results for almost every productions capacity. Advanced Vacuum-Overpressure Appliance enables also excellent results on difficult-to-cast metals as manganese content alloys, zinc content alloys etc. The VCC 400 is designed to be robust and easy to use. All relevant parts are water cooled by insert steel pipes. These machines are designed for continuous operation.
Customer’s benefit  Very easy handling top results.
 For all jewelry alloys, even Palladium White Gold, manganese content alloys, zinc content alloys.
 Only a short training period.
 Change of crucible, die, die cooler and stopper rod in a very short time.
 Best value-performance ratio.
 Complete Data record is available by printer and RS 232-interface.
 Mobile data set for remote-control/service.

Application:
 All continuous casting applications in factories, even smaller quantities.
 For all jewellery alloys, even Palladium White Gold, manganese contenting alloys, zinc content alloys.
 Production of semi-finished product like wire, band and tubes, special profiles as well in absolute homogeneously structure.
Features:
 Manual casting mode.
 Low frequency induction heated = excellent mixing of liquid metal.
 Generator 15 kW.
 Crucible capacity 265 cm³ = 4 kg Au 18 ct ( 78 mm crucible).
 Optional bigger crucible set 400 cm³ = 6 kg Au 18 ct ( 88 mm crucible) instead of standard crucible ( 78 mm crucible).
 Temperature up to 1300°C by thermocouple Type N (NiCrSi-NiSi) or 1600°C by thermocouple type S (Pt10Rh-Pt).
 16 Temperature programs.
 Melting under protective gas atmosphere.
 Round die for wire up to  20mm; sheet up to 20x8 mm; tube up to  35 mm.
 Rectangular die for sheet up to 50x8mm, optional 60x8 mm (400 cm³ crucible).
 Microprocessor controlled drawing unit with reverse function.
 All handling steps pneumatic assisted.
 Digital display indicates full supply (air, gas, water) and complete status of machine at present.
 Production machine, continuous operation.
 Optional diffusion bonding (sintering) kit.
 Data printer for process controlling and service.
