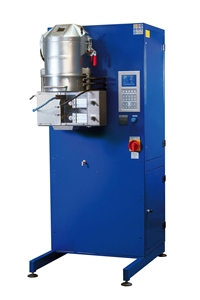

This modern vertical continuous casting machine for precious metal-non precious metals offers excellent casting results for almost every production capacity. The VCC 1000 is designed to be robust and easy to use. All relevant parts of the machine are water cooled by high grade steel pipes. Therefore, this machine is designed for continuous operation.
Benefit:
• Very easy handling top results
• Only a short training period
• Change of crucible, dies, and stopper rod in a very short time
• Best value-performance ratio
• Complete Data record is available by printer and RS 232-interface

Application:
• All continuous casting applications in factories, wire up to ø 40 mm, tube up to ø 50 mm, bands up to 40 x 40 mm in round dies (outside diameter ø 70 mm) or bands up to 100 x 10 mm in rectangular dies.
• For all jewellery alloys, even difficulty to handle alloys like Palladium White Gold, silver (degasing!) and manganese alloys.
• Production of semi-finished product likes wire, band and tubes, special profiles as well in absolute homogeneously structure.

Features:
• Manual casting mode, automatic controlled die temperature.
• Low frequency induction heated = excellent mixing of liquid metal.
• Generator 25 kW. • 1500 cm3 = 15 kg Ag / 22kg, Au 18ct.
• Temperature up to 1200°C by thermocouple Type K (NiCr-Ni) or 1500°C by thermocouple type S (PtRh-Pt).
• Melting under protective gas atmosphere or vacuum.
• Wire up to ø 40 mm, tube up to ø 50 mm, bands up to 40 x 40 mm, round dies outside diameter ø 70 mm or bands up to 100 x 10 mm in rectangular dies.
• Microprocessor controlled drawing unit with reverse function.
• All handling steps pneumatic assisted.
• Digital display indicates full supply (air, water) and complete status of machine at present.
• Production machine, continuous operation.
• Optional diffusion bonding (sintering) kit.
• Data printer for process controlling and service.

• All continuous casting applications in factories, wire up to ø 40 mm, tube up to ø 50 mm, bands up to 40 x 40 mm in round dies (outside diameter ø 70 mm) or bands up to 100 x 10 mm in rectangular dies.
• For all jewelry alloys, even difficulty to handle alloys like Palladium White Gold, silver (degasing!) and manganese alloys.
• Production of semi-finished product likes wire, band and tubes, special profiles as well in absolute homogeneously structure.
